| Lugar de origen | Porcelana |
| Nombre de la marca | Hightop |
| Certificación | CE，EPA，ISO，TUV |
| Número de modelo | HT16 |

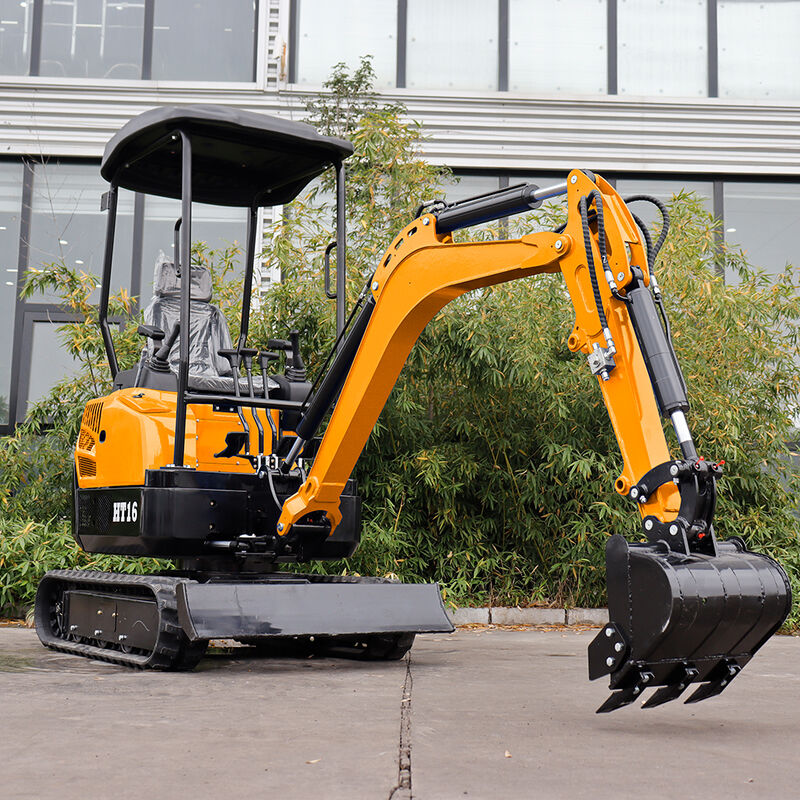

The HT-16 mini excavator is compact and manoeuvrable, offering powerful performance and low fuel consumption. It is ideal for working in confined spaces such as orchards, gardens and small-scale municipal projects. It can be fitted with a variety of attachments, making it a versatile machine that is easy to operate and highly practical.
| Specification | Measurement (mm) |
|---|---|
| Transport length A | 2450 |
| Total width B | 1100 |
| Upper width D | 990 |
| Overall height (top of cab) C | 2280 |
| Standard track pad width F | 180 |
| Track gauge E | 920 |
| Height of the dozer blade above the ground G | 105 |
| Excavation depth H using a dozer blade | 270 |
| Turning radius at the rear I | 795 |
| Track contact length J | 1050 |
| Track length K | 1350 |
| Specification | Measurement (mm) |
|---|---|
| Maximum digging height a | 2785 |
| Maximum unloading height b | 1860 |
| Maximum digging depth c | 2050 |
| Maximum excavation distance d | 3130 |
| Minimum turning radius e | 1655 |
| Maximum height f at the minimum turning radius | 2205 |
| Specification | Value |
|---|---|
| Work quality | 1100 kg |
| Bucket capacity | 0.02 m³ |
| Types of working equipment | Backhoe |
| Hill-climbing ability | 30° |
| Component | Specification |
|---|---|
| Engine | Briggs & Stratton / KOOP |
| Main valve | Take-off |
