| Lugar de origen | Porcelana |
| Nombre de la marca | Hightop |
| Certificación | CE，EPA，ISO，TUV |

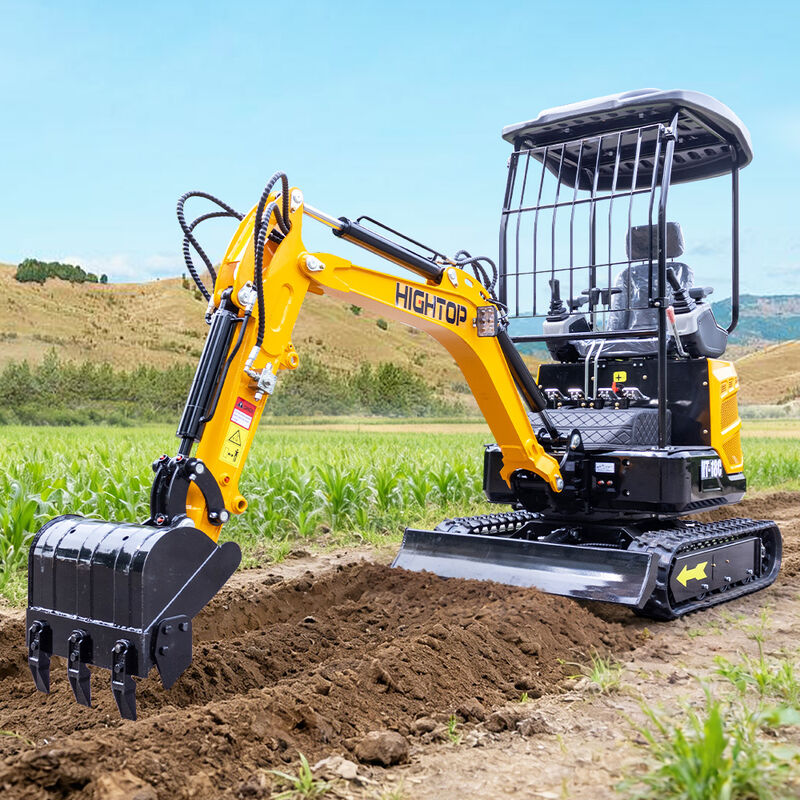

| Número de modelo | HT18C |
| Specification | Value |
|---|---|
| Overall length/Shipping length A | 4150/2350 MM |
| Total width B | 1100 MM |
| Upper width D | 960 MM |
| Overall height (to the top of the cab) C | 2280 MM |
| Standard track pad width F | 180 MM |
| Track gauge G | 920 MM |
| Minimum ground clearance H | 119 MM |
| Turning radius at the rear I | 760 MM |
| Track contact length J | 1150 MM |
| Track length K | 1400 MM |
| Technical Parameter | Value |
|---|---|
| Quality of work | 1000 KG |
| Bucket capacity | 0.02 m³ |
| Rated power | 17 KW |
| Rotational speed | 12 RPM |
| Hill-climbing ability | 30° |
| Parameter | Value |
|---|---|
| Maximum digging height a | 2490 MM |
| Maximum unloading height b | 1635 MM |
| Maximum digging depth c | 1950 MM |
| Maximum digging distance d | 2880 MM |
| Minimum turning radius e | 1580 MM |
| Maximum height at minimum turning radius f | 1620 MM |
