HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine
  • HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine
  • HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine
  • HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine
  • HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine
  • HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine
  • HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine
HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine

HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine

Lugar de origen Porcelana
Nombre de la marca Hightop
Certificación CE，EPA，ISO，TUV
Número de modelo HT1000
Detalles del producto
Nombre del producto:
Cargadora compacta HT1000
Altura máxima de descarga:
1610 mm
Liquidación de Min.ground:
128 mm
MOTOR:
KUBOTA D1105/PERKINS 403J-11
Velocidad de rotación:
3000 rpm
Resaltar:

KUBOTA D1105/PERKINS 403J-11 Engine Skid Steer Loader

,

3000rpm Rotating Speed Skid Steer Loader

,

1610mm Max Dump Height Skid Steer Loader

Pago y términos de envío
Cantidad de orden mínima
1 juego
Detalles de empaquetado
caja de madera
Tiempo de entrega
5-14 días de trabajo
Condiciones de pago
LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente
100 establecidos por mes
Descripción de producto

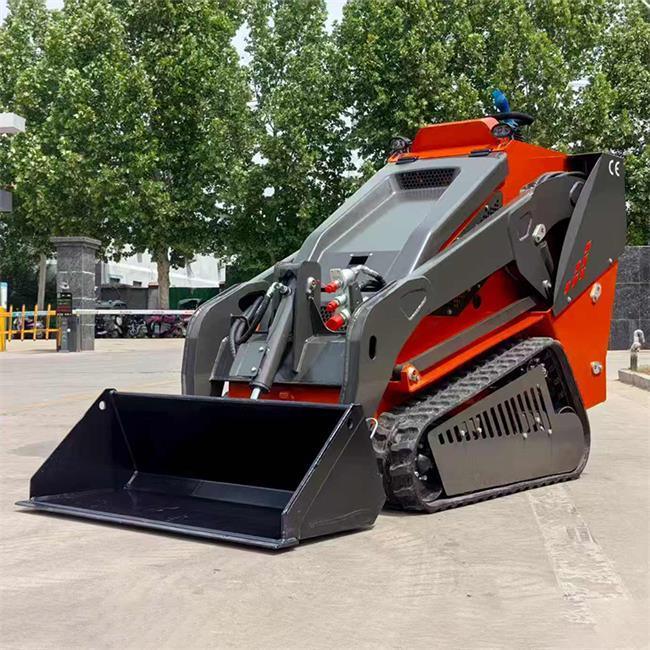

HT1000 Skid Steer Loader
Skid steer loaders are specialized wheeled chassis equipment that utilize differential wheel speeds for steering. Their compact design allows for on-the-spot turning and quick attachment changes, making them ideal for confined workspaces, uneven terrain, and applications requiring frequent task changes.
Application Areas
  • Construction: Material transport (sand, cement), foundation excavation, trench digging, and waste cleanup
  • Agricultural Production: Feed/fertilizer transport, hay stacking, land leveling, and livestock farm cleanup
  • Landscaping: Greenery transplanting, tree pit digging, land leveling, debris clearing, and stone transport
  • Municipal Engineering: Road maintenance, material paving, compaction, and underground pipeline work
Key Advantages
  • Compact & Agile: Operates in spaces inaccessible to larger equipment
  • Multi-Functional: Quick attachment changes enable diverse applications
  • Easy Operation: Minimal training required for operator proficiency
Technical Specifications
Specification Value
Angle of departure 25°
Max dump height 1610mm
Min ground clearance 128mm
Max lift height of boom 2155mm
Total length (No bucket) 2278mm
Max lift height of bucket 2719mm
Track length on ground 1065mm
Total width (No bucket) 1035mm
Bucket width 1140mm
Loading weight 475kg
Machine weight 1780kg
Track width 200mm
Fuel tank capacity 33L
Travel pump flow 61.6L/min
Engine KUBOTA D1105/PERKINS 403J-11
Rotating speed 3000rpm
Main pump 2
Max dump angle 45°
Max dump distance 605mm
Height of foot pedal to ground 228mm
Total height 1670mm
Total length (with bucket) 2835mm
Max rotary angle of bucket 81°
Turning radius (with bucket) 1528mm
Trackbase 835mm
Bucket capacity 0.14m³
Tipping ability 1100kg
Traveling speed 10km/h
Hydraulic system pressure 21Mpa
Hydraulic oil tank capacity 30L
Working pump flow 47.6L/min
Rated power 18.2KW/18.4KW (25HP)
Noise ≤93Db
Valve 4
Accessories pump 1
Product Images
HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 0 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 1 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 2 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 3 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 4 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 5 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 6 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 7 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 8 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 9 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 10 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 11 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 12 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 13 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 14 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 15 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 16 HT1000 Skid Steer Loader with KUBOTA D1105/PERKINS 403J-11 Engine 17
