| Lugar de origen | Porcelana |
| Nombre de la marca | Hightop |
| Certificación | CE，EPA，ISO，TUV |
| Número de modelo | HT12G |

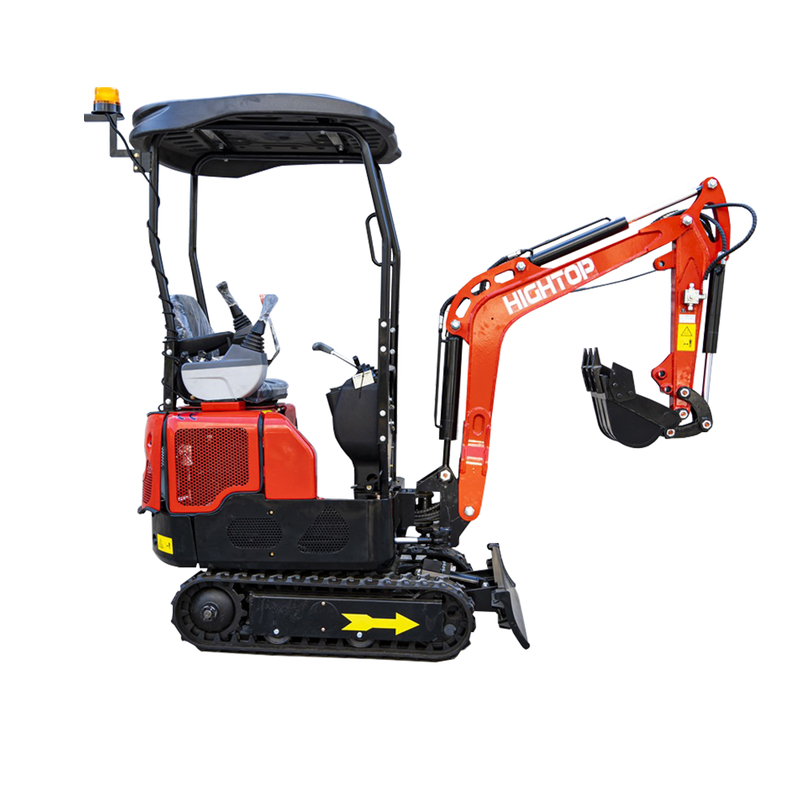

| Model | HT12G | Maximum excavation height | 2455mm |
|---|---|---|---|
| Engine | Z482 Kubota | Maximum dumping height | 1620mm |
| Transportation length | 2380mm | Maximum digging depth | 1850mm |
| Total width | 930mm | Maximum excavation distance | 2920mm |
| Upper width | 940mm | Minimum radius | 1510mm |
| Total height (cab roof) | 2270mm | Maximum height at minimum turning radius | 1930mm |
| Standard track shoe width | 180mm | Work quality | 900kg |
| Track gauge | 750mm | Bucket capacity | 0.02m³ |
| Height of bulldozer blade above ground | 110mm | Form of working device | Backhoe |
| Bulldozer shovel pushes excavation depth | 195mm | Gradeability | 30 degrees |
| Tail turning radius | 820mm | ||
| Track grounding length | 890mm | ||
| Track length | 1235mm |
