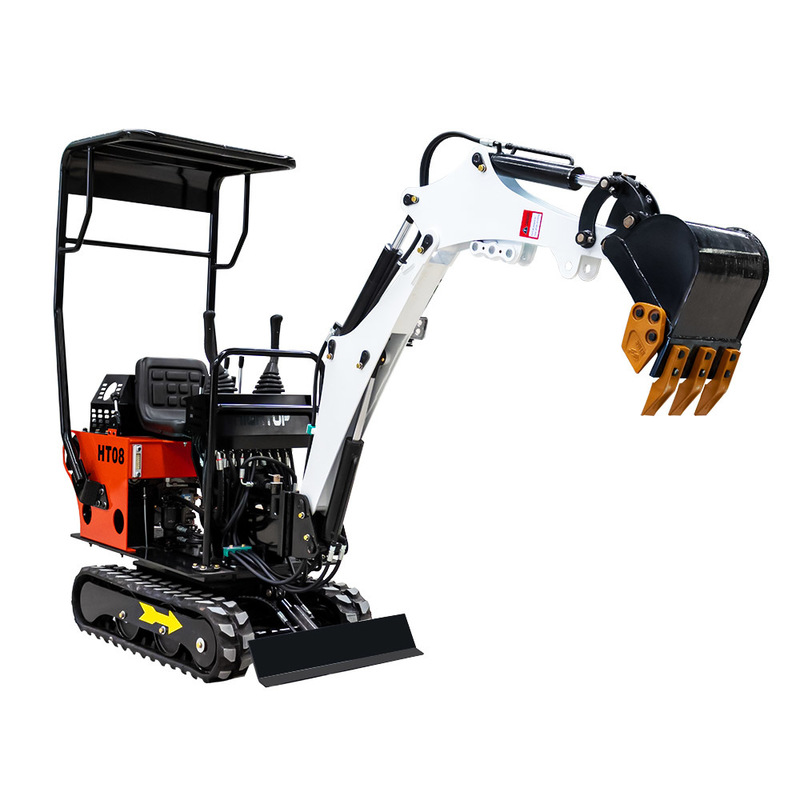

HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket
  • HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket
  • HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket
  • HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket
  • HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket
  • HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket
  • HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket
  • HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket
HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket

HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket

Lugar de origen PORCELANA
Nombre de la marca Hightop
Certificación CE，EPA，ISO，TUV
Número de modelo HT-08
Detalles del producto
Potencia nominal:
12 CV
Capacidad de cubo:
0.025 M3
Peso:
650 kg
Fuerza de excavación máxima:
7.5KN
Graduabilidad:
30 °
Resaltar:

12HP mini excavator with bucket

,

800kg compact excavator with warranty

,

0.025m3 bucket mini digger

Pago y términos de envío
Cantidad de orden mínima
1 set
Detalles de empaquetado
Estuche de madera
Tiempo de entrega
5-14 días de trabajo
Condiciones de pago
L/C, D/A, D/P, T/T, Western Union, Moneygram
Capacidad de la fuente
100 establecidos por mes
Descripción de producto
HT08 800kg Mini Excavator
Product Features
  • Hightop excavator features a unique big arm structure design for enhanced durability
  • Clear front pipeline layout with protective cover to prevent exposure and damage
  • Excavator arm cylinder uses premium brand components with integrated processing technology
  • Precision structural components processed through shot blasting, pickling, and baking for superior paint adhesion and gloss
  • 0.8 ton mini excavator equipped with pure cast iron hydraulic pump for greater wear resistance at 3600 rpm
  • High-quality imported hydraulic pipes for reliable performance
  • Rubber tracks effectively distribute machine weight, ideal for sensitive surfaces like urban roads, landscaping, and indoor work
  • Customizable appearance available in yellow, red, blue, black, and other colors
Technical Specifications
Performance Parameters
Rated power 12HP
Bucket Capacity 0.025 m³
Engine Model changchai 192
Weight 650 kg
Max. digging force 7.5KN
Pump form Single gear pump
Set working pressure 14Mpa
Swing speed 12 rpm
Travel speed 2.2Km/h
Gradeability 30°
Ground pressure 19Kpa
Working Range
Max. digging distance 2450mm
Max. digging depth 1200mm
Max. digging height 2350mm
Max. dumping height 1600mm
Min. swing radius 1100mm
Max. upgrade height of bulldozer blade 120mm
Max. digging depth of bulldozer blade 200mm
Dimensions
Total width 720-780mm
Total height 1300mm
Total length 2430mm
Min. ground clearance 80mm
Track ground length 1140mm
Track width 150mm
Product Gallery
HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket 0
HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket 1
HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket 2
HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket 3
HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket 4
HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket 5
HT08 800kg Mini Excavator with 12HP Engine and 0.025m³ Bucket 6
